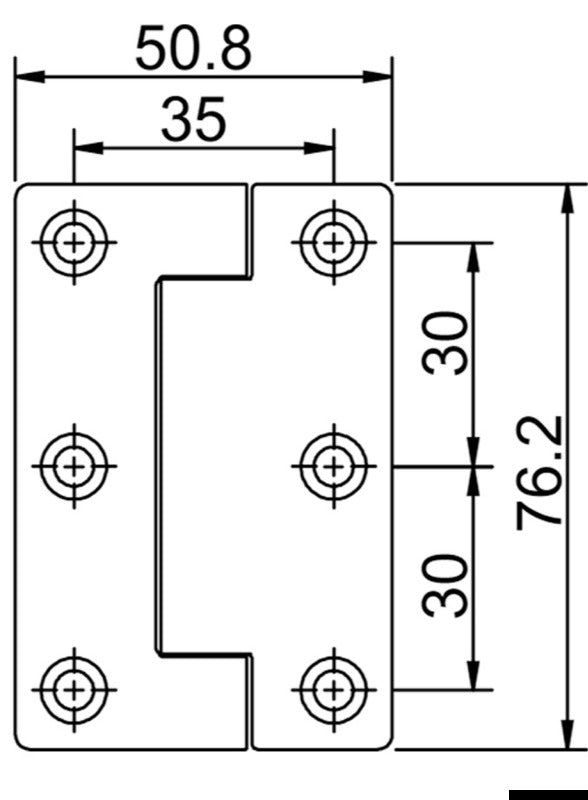

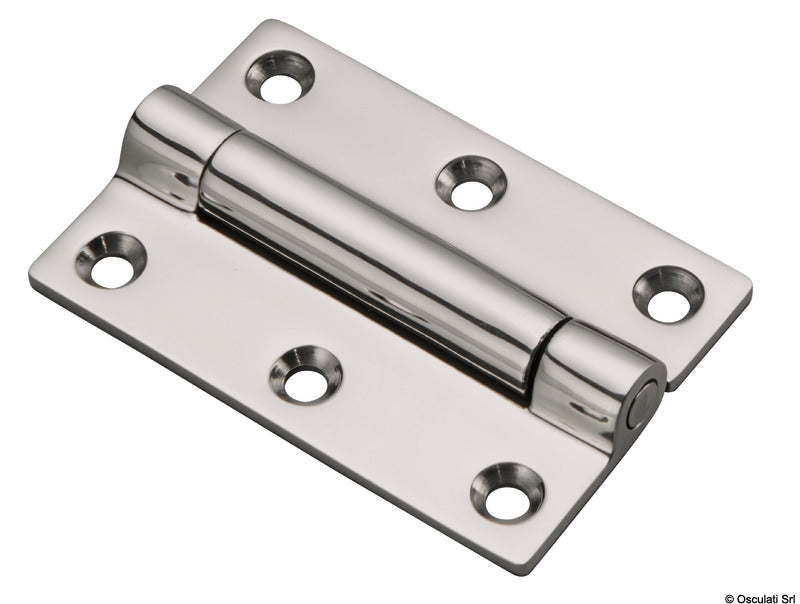

Self-supporting AISI316 51x78 mm
Osculati·38.832.07#PZ
€73,00
VAT included
Made to order , ships in 7 days
- Tracked shipping, duties handled
- 30-day returns · 2-year warranty
- Misure mm
- 51x76
- Model
- Protruding knot
- Torque kg·cm +-15%
- 40
- Thickness mm
- 3
At a glance
- 51x76 Misure mm
- Protruding knot Model
- 40 Torque kg·cm +-15%
- 3 Thickness mm
Product data
- Part number
- 38.832.07#PZ
- Brand
- Osculati
- Misure mm
- 51x76
- Model
- Protruding knot
- Torque kg·cm +-15%
- 40
- Thickness mm
- 3
- Weight
- 0.132 kg
- Package size
- 6 x 1 x 7.5 cm
Description
Made of precision-cast AISI 316 stainless steel.
Constant torque 30 kg·cm ± 15% guaranteed for 20,000 cycles.
The torque is expressed in kg·cm, , meaning that departing from the hinge rotation axis, the effort decreases.

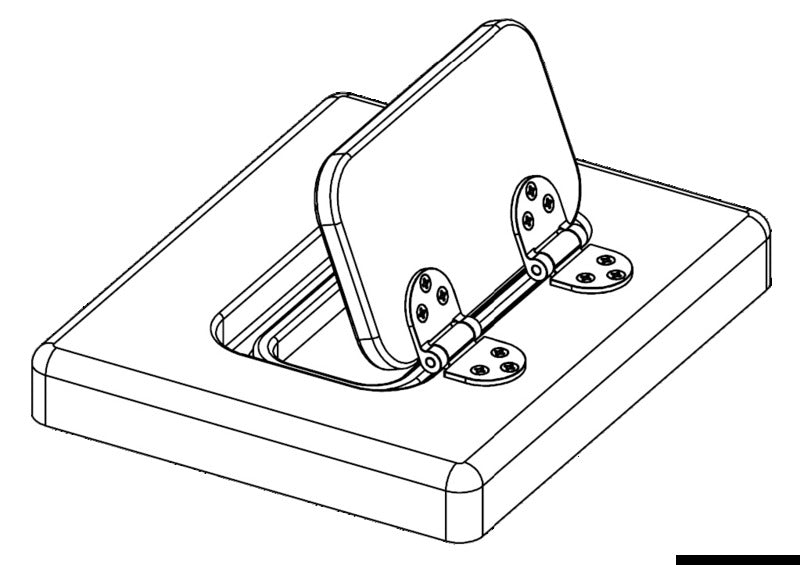

Torque calculation: hatch depth (cm) x 1/2 hatch weight (kg).
Example: 2x 30-kg hinges perfectly hold a hatch 2-kg heavy and 40 cm deep.
Same range
Other sizes and versions from the same range.
