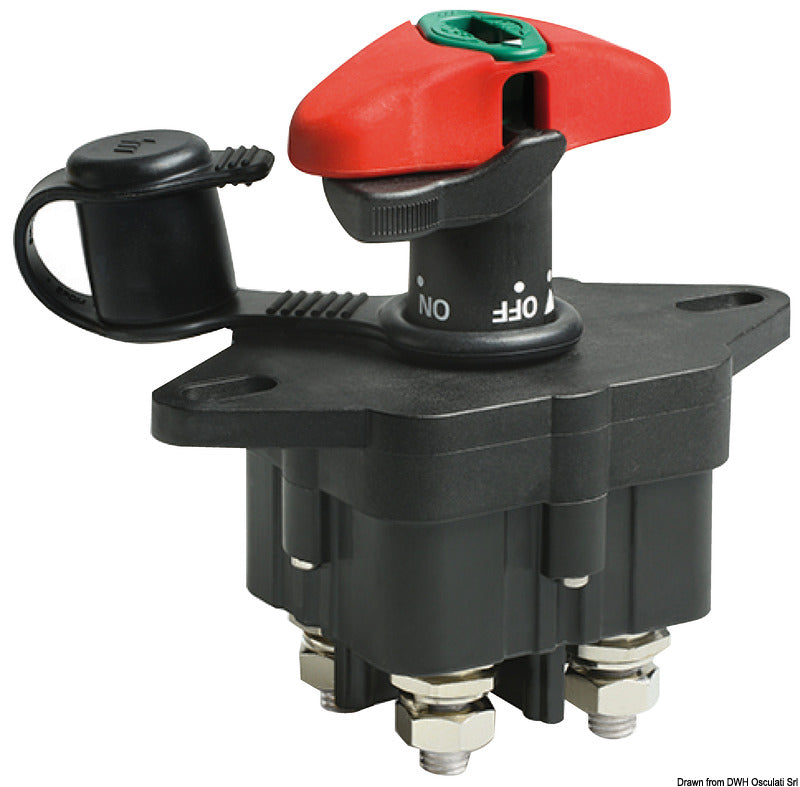

LITTELFUSE dual-polar battery switch with key 250A
-·14.386.20#PZ·EAN 8033137205569
€175,20
VAT included
In stock, ships within 2 working days
- Tracked shipping, duties handled
- 30-day returns · 2-year warranty
- V
- 12/24
- Max capacity A - Intermittent 10 sec.
- 1000
- Max capacity A - in continuous
- 250
- Base mm
- 140.3x74.7
- Recess mm
- 83.8x83.8
- Recess-fit overhang mm
- 61,5
At a glance
- 12/24 V
- 1000 Max capacity A - Intermittent 10 sec.
- 250 Max capacity A - in continuous
- 140.3x74.7 Base mm
- 83.8x83.8 Recess mm
- 61,5 Recess-fit overhang mm
Product data
- Part number
- 14.386.20#PZ
- EAN
- 8033137205569
- Brand
- -
- V
- 12/24
- Max capacity A - Intermittent 10 sec.
- 1000
- Max capacity A - in continuous
- 250
- Base mm
- 140.3x74.7
- Recess mm
- 83.8x83.8
- Recess-fit overhang mm
- 61,5
- Pins mm
- 10
- Weight
- 0.802 kg
- Package size
- 18 x 13 x 9 cm
Description
Fitted with 4 rear terminals. With fixed or removable handle and key.
M10 silver-plated copper terminals. High performance product.
This battery disconnect switch is ideal on vessels with metal hull. Special lever to lock/unlock.
Key ingress protection: IP65.
Shipping & returns
- Availability In stock, dispatched within 2 working days
- Tracked shipping Shipped from our supplier warehouse, tracking on every order
- 30-day returns Unused and in original packaging
- 12-month warranty Offered by easysea on every chandlery item
Technical data and product images: Osculati S.r.l., reproduced under licence.
